- Wi-Fi and Bluetooth (over u.FL connector)
The ESP32-WROOM-32U (8 MB) module on board takes care of all your Wi-Fi networking needs. The u.FL connector ensures that you have the flexibility of connecting any antenna of your choice.

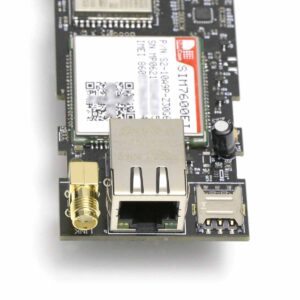

- 4G LTE with GSM fallback (over SMA connector)
Stay connected in remote locations with 4G connectivity. GSM still works if 4G LTE is unavailable – making this the best solution to stay connected. An SMA antenna connector lets you place your antenna for maximum coverage.
List of supported cellular network bands:
- GNSS (over u.FL)
Track location-dependent data with the GNSS receiver on board. Requires an active antenna to be connected for best results.
The ethernet connector on board enables communication with advanced PLC devices and implementation of modbus over TCP/IP.
Our gateway has you covered if you need to connect to devices over RS-485. The Gateway is equipped with a 10 mbps RS-485 transceiver.

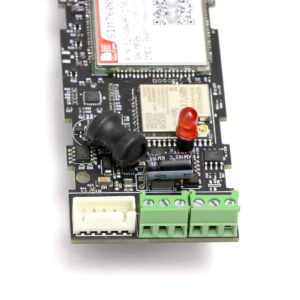

- 5V and 3.3V Sensors with I2C
You can easily interface low power sensors over I2C (like environment sensors). All you have to do is plug them into the JST-XH sensor header. As long as the sensors draw a total current of less than 250mA, the Gateway can power them all.
