ES7148 Module: Simple I2S Audio DAC

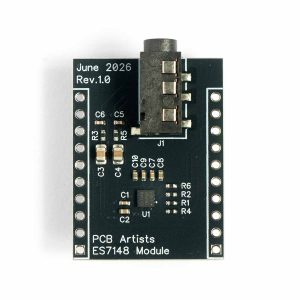

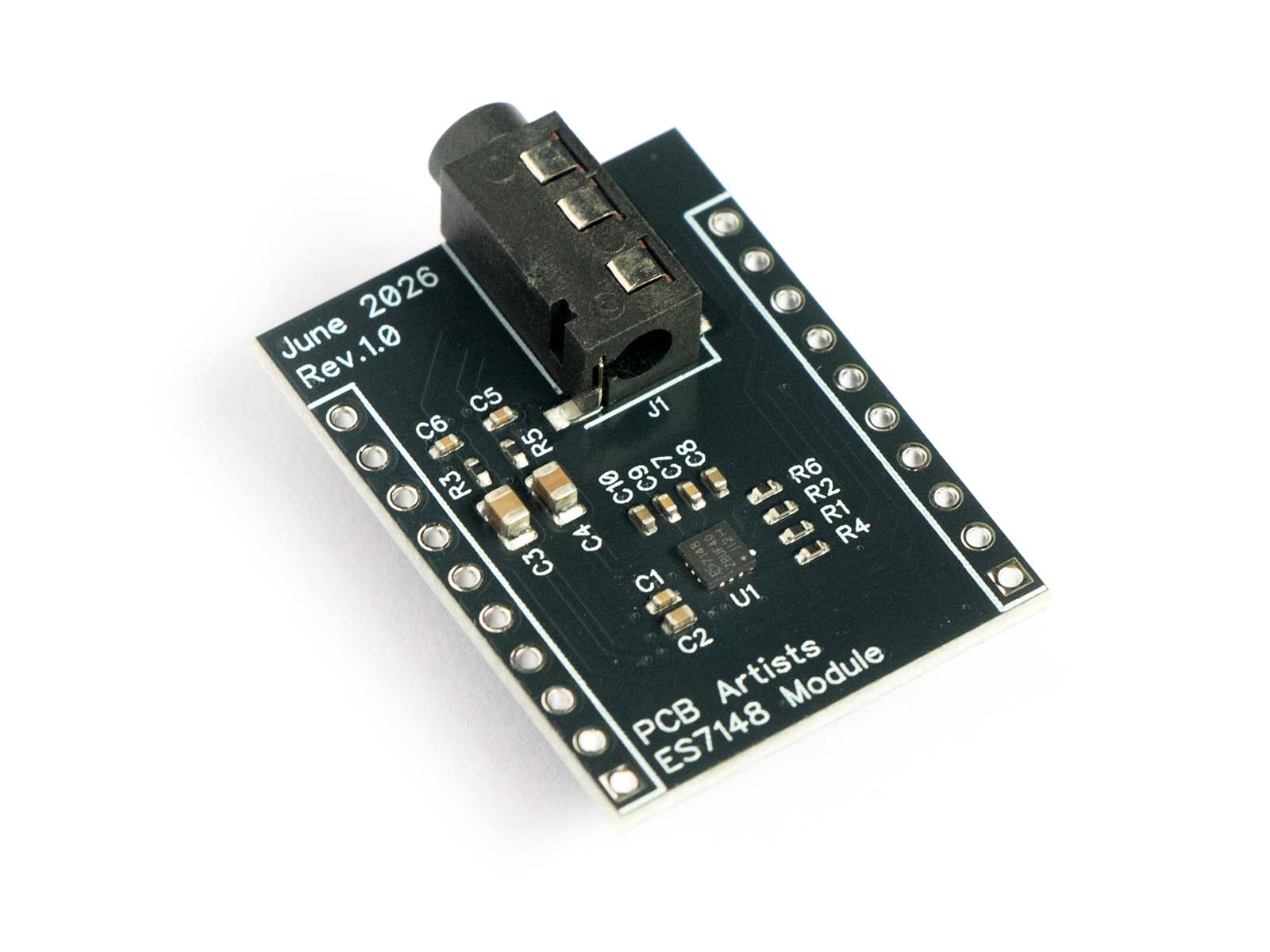

The PCB Artists ES7148 module is a stereo 24-bit DAC module that needs no configuration at all. All you need to do is power up the module, provide MCLK, send a stream of stereo I²S data and it plays crystal-clear audio.
No I²C bus, no complex codec configuration – same footprint as our ES8388 module.

Overview

The ES7148 is a simple, low-cost stereo audio DAC. This module allows you to test and prototype with this audio DAC without spinning up your own custom PCB.
You may have already tried our other codec modules. This module follows the same pinout and form-factor so you can drop in and try the ES7148 module.

The ES7148 is quite popular and makes an appearance in boards like Espressif’s ESP32-Korvo-DU1906.

The ES7148 is quite popular and makes an appearance in boards like Espressif’s ESP32-Korvo-DU1906.

What makes the ES7148 module unique is that it is very beginner-friendly and requires no setup or configuration.
If you are at the beginning phases of making a system that needs to play back audio – this module is perfect for your project.
There are no drivers and configuration issues to troubleshoot and that helps speed up simple playback applications.

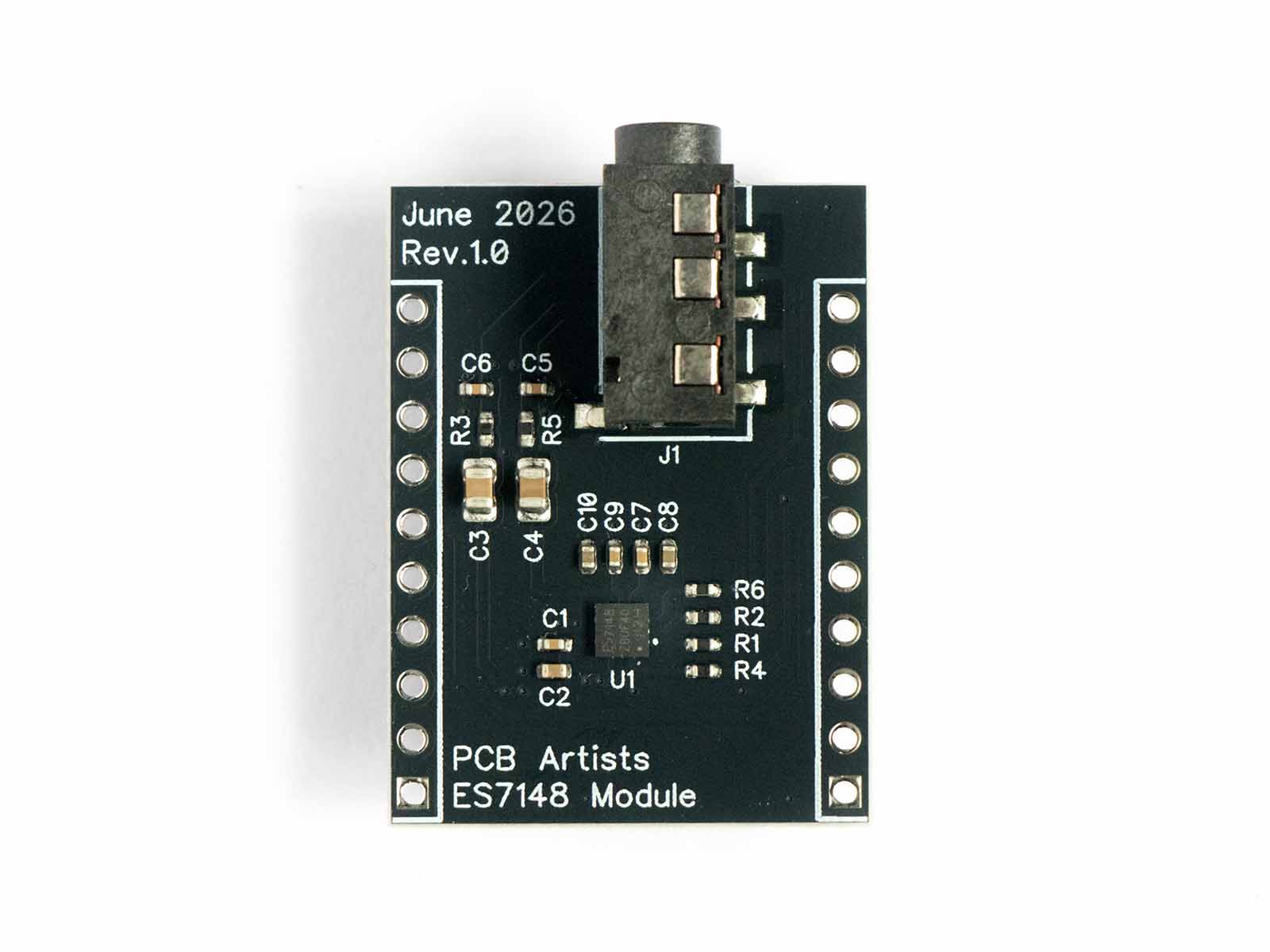

We have carefully split analog and digital ground planes for good noise immunity. The line output are available on the 3.5mm jack, as well as the 0.1″ header.
Because the output is AC coupled, you can feed the line output to any other audio equipment such as an amplifier or recorder. The low-pass filter ou the output lines suppresses whatever noise is caused by digital signal lines on a prototyping setup.

Features

ES7148 or ES8388?

All our audio modules are largely pin- and form-factor compatible to allow you to try several modules without major changes.
The ES7148 module is the shortest and easiest path to adding qualiy audio playback to your embedded system.
Pick the ES8388 module when you need to record, or when you want control over gain, mixing and ALC.

Specifications

Audio Characteristics

Resolution	16 – 24 bit, detected automatically
Sample rates	8 kHz – 200 kHz
Signal to noise ratio	100 dB typical, 90 dB minimum (A-weighted)
THD + N	−85 dB typical, −80 dB maximum
Dynamic range	105 dB typical
Channel separation	100 dB typical at 1 kHz
Frequency response	−0.02 / +0.08 dB, 20 Hz – 20 kHz
Interchannel gain mismatch	0 dB typical

Measured at VDD = 3.3 V, 25 °C, F_s = 48 kHz,
CLKIN/LRCK = 256, 0 dB 1 kHz sine input.

Power Supply

Supply voltage	3.0 – 3.6 V  (3.3 V typical)
Current, normal operation	19 mA typical at 3.3 V
Current, power-down	8 mA typical at 3.3 V
Digital I/O levels	1.8 V or 3.3 V logic
Absolute maximum supply	3.6 V — do not exceed

Digital Interface

Audio interface	I²S, 16 – 24 bit, slave only
Control interface	None
CLKIN frequency	51.2 MHz maximum
SCLK frequency	26 MHz maximum
LRCK frequency	200 kHz maximum

Analog output

Full-scale output level	0.7 × VDD Vpp  (2.31 Vpp at 3.3 V)
Output impedance	120 Ω (ES7148)
Minimum load resistance	2 kΩ see ES7148 Datasheet
Maximum load capacitance	100 pF
Module output coupling	22 µF series capacitor + 33 Ω series resistor, both channels
Connectors	3.5 mm stereo jack and 0.1" header pins

Physical

Form factor	Identical to the PCB Artists ES8388 module
Connections	20-pin, 0.1" pitch Ships with un-soldered headers
SKU	ES7148-MOD

Clocking

The clock frequency and ratio are the only configuration element that you need to deal with. The ES7148 uses CLKIN-to-LRCK ratio for its internal DAC and filters.
Pick any valid frequency and ratio from the ES7148 datasheet.

Pinout

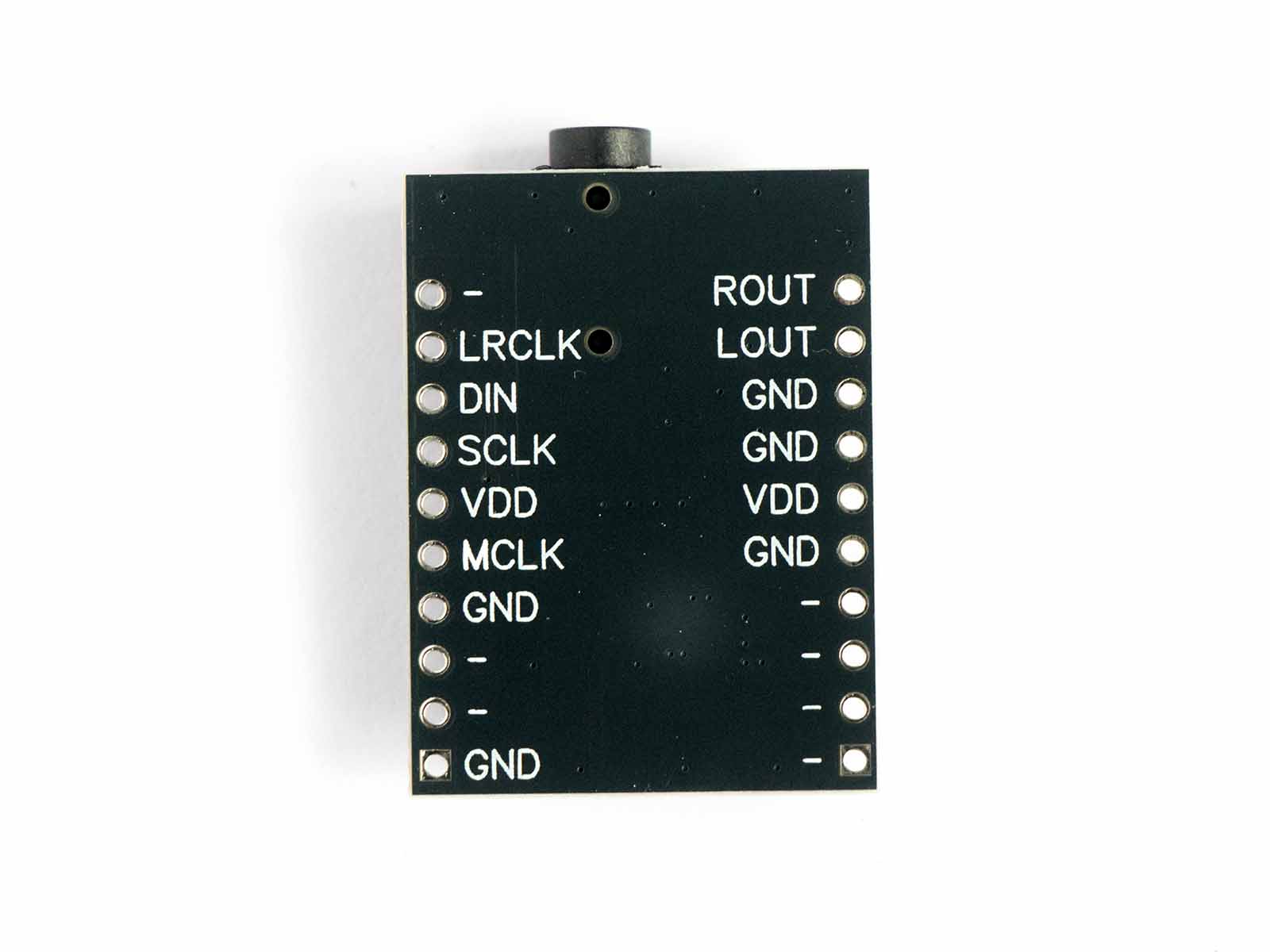

Twenty pins on a 0.1" grid, in the same positions as our ES8388 module. Because the ES7148 only outputs audio, the DOUT pin is not connected.
On the analog side, audio input lines are not connected.
VDD pins on both sides are internally connected, and GND pins are all internally connected.
We recommend connecting GND on both sides for best low-noise performance.

Output Stage and Driving Headphones

Each channel leaves the chip through a 22 µF series capacitor and a 33Ω series resistor before reaching both the 3.5 mm jack and the header pins.
The capacitor removes the DC common-mode offset so you can connect straight to line inputs of other devices that accept the line output voltage levels of ES7148.

Getting Started

There is no configuration step, so it is as simple as playing an I2S stream.

1. Power it up

   Tie AVDD and DVDD to 3.3 V and connect both grounds.
   Note that the absolute maximum is 3.6 V, never feed it 5 V via supply or signal lines.
   Join the analog and digital grounds at a single point near the host MCU for the quietest noise levels (“star grounding”).
   For prototyping, you can connect one analog GND and one digital GND to the host MCU for best results.

2. Pick a clock ratio

   Choose a CLKIN/LRCK ratio from the clocking table that fits your sample rate. For example, 256 × f_s requires 12.288 MHz at 48 kHz.

3. Bring up I²S

   Configure the host as I²S master with MCLK enabled. The ES7148 is slave-only and detects the word length itself, so 16-bit and 24-bit streams both work with no change.
   Here is a quick snippet for an ESP32-C3.

   es7148_i2s.c — ESP-IDF v5

   i2s_chan_handle_t tx;
   i2s_chan_config_t chan_cfg =
       I2S_CHANNEL_DEFAULT_CONFIG(I2S_NUM_0, I2S_ROLE_MASTER);
   i2s_new_channel(&chan_cfg, &tx, NULL);

   i2s_std_config_t std_cfg = {
       .clk_cfg  = I2S_STD_CLK_DEFAULT_CONFIG(48000),
       .slot_cfg = I2S_STD_PHILIPS_SLOT_DEFAULT_CONFIG(
                       I2S_DATA_BIT_WIDTH_24BIT,
                       I2S_SLOT_MODE_STEREO),
       .gpio_cfg = {
           .mclk = GPIO_NUM_3,   /* pin 15  MCLK / CLKIN */
           .bclk = GPIO_NUM_4,   /* pin 17  SCLK         */
           .ws   = GPIO_NUM_5,   /* pin 19  LRCLK        */
           .dout = GPIO_NUM_6,   /* pin 18  DIN / SDATA  */
           .din  = I2S_GPIO_UNUSED,
       },
   };

   /* CLKIN / LRCK = 256, a single-speed mode ratio. */
   std_cfg.clk_cfg.mclk_multiple = I2S_MCLK_MULTIPLE_256;

   i2s_channel_init_std_mode(tx, &std_cfg);
   i2s_channel_enable(tx);

4. Write samples

   That is all you need! Once valid clocks appear, the DAC leaves power-down on its own and ramps up. Anything you write to I²S comes out of the jack.

   es7148_i2s.c — playback loop

   size_t written;

   while (1) {
       fill_buffer(samples, sizeof samples);

       /* No volume register on the ES7148 — attenuate in software. */
       for (int i = 0; i < SAMPLE_COUNT; i++) {
           samples[i] = (int32_t)(samples[i] * volume);  /* 0.0 .. 1.0 */
       }

       i2s_channel_write(tx, samples, sizeof samples, &written,
                         portMAX_DELAY);
   }

ESP32-C3 wiring

The same four signals as the ES8388 module, minus the I²C pair and the data output line.

ES7148 module	ESP32-C3	Function
MCLK pin 15	GPIO3	System clock
SCLK pin 17	GPIO4	I²S bit clock
LRCLK pin 19	GPIO5	I²S word clock
DIN pin 18	GPIO6	Audio data to the DAC
AVDD, DVDD	3V3	Supply
GND	GND	Ground, joined at one point

Platform support

Any host with an I²S transmitter and master clock output can drive this module.

ESP32 (and ESP32-S3, ESP32-C3, etc.) Recommended

Make sure that the ESP32 that you are using can generate MCLK according to the LRCLK rate. No ESP-ADF codec driver is involved.
ESP32 has restrictions on which GPIOs can output MCLK – confirm before connecting.

• ESP32 ES7148 playback guide — wiring and a minimal I²S example coming soon
• Streaming WAV files from an SD card coming soon

STM32 Straightforward

Enable the I²S peripheral with master clock output in CubeMX, set the audio frequency, and feed it with circular DMA. No codec initialisation code is needed at all.

• STM32 ES7148 I²S playback coming soon

Raspberry Pi and RP2040 In progress

The Pi’s I²S interface and the RP2040’s PIO-based I²S both work. Guides for these are still being written. If you are building something on one of them and get stuck, please contact us.
